Flurine®Middle Mooney Fluoroelastomer

Flurine®Middle Mooney Fluoroelastomer
Flurine®Middle Mooney FluoroelastomerFlurine®Middle Mooney FluoroelastomerFlurine®Middle Mooney Fluoroelastomer

Flurine®Middle Mooney Fluoroelastomer

Flurine®PC series is peroxide-cured fluoroelastomer, copolymerized with vinylidene fluoride (VF2) and hexafluoropropylene (HFP)
CategoriesFluoroelastomer FKM
BrandZheflon PVDF & Flurine FKM Manufacturer
Model26502,26602,26702,26703,26802,26902
FeaturesMiddle Mooney viscosity
UsesShaft seals, gaskets, molded tubing,oil seals, dia

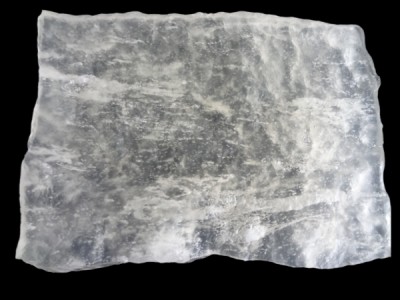

FormsWhite or light-yellow flake
Update TimeNov 21,2024
Detail Information
Description
Flurine® 26502,26602,26702,26703,26802 and 26902 are middle Mooney Fluoroelastomer, which is comprised of vinylidene fluoride (VF2) and hexafluoropropylene (HFP), frequently used in many industries including automotive, fluid power, appliance and chemical industries.

They have good ductility and be excellent resistant to oils, fuels, aliphatic series, aromatic hydrocarbons, lubricants, and most mineral acids
Technical Specifications
General
FeaturesMiddle Mooney viscosity
UsesShaft seals, gaskets, molded tubing,oil seals, diaphragm, sheets
FormsWhite or light-yellow flake
ItemsTypical ValueTest Method
265022660226702267032680226902
Physical Properties
Fluorine Contentmass%66
Densityg/cc1.81~1.83ASTM D297
Mooney Viscosity50~5960~6970~7965~8580~9990~110ASTM D1646 ML 1+10 at 121°C
Water content0.15ASTM D 5668
SolubilitySoluble in lower ketones and esters
Vulcanization Properties
T10(s)<120<115<110<160<105<100ASTM D5289
T90(s)<230<220<210<270<200<190ASTM D5289
Mechanical Properties
Tensile strength(MPa)14.014.214.513.514.515.0ASTM D412 Method A
100% Modulus5.25.35.55.66.06.2ASTM D412 Method A
Elongation at Break(%)190185180170165160ASTM D412 Method A
Tearing Strength(KN/m)202021202223ASTM D624
Hardness, Shore A767676787777ASTM D2240, Type A
Compression Set181817201717ASTM D395, Test B 70 hours at 200℃
Air-oven agingISO 188 After Dry Heat Aging;70 hours at 230℃
Tensile strength change rate(%)+5+4+3+6+1+1ASTM D412 Method A
Elongation at Break change rate(%)-6-5-5-3-3-3ASTM D412 Method A
Hardness change, Shore A000000ASTM D2240, Type A
Thermal Properties
Glass Transition Temp, Tg(℃)-20ASTM D1329
Brittleness Temperature(℃)-30ASTM D2137
Chemical resistance Properties
Resistance to liquids3 # standard oil
Volume change rate(%)+2+2+2+2+1+1ASTM D471 72 hours at 150℃
Mass change rate(%)+1+1+1+1+1+1ASTM D471 72 hours at 150℃
FormulationCuring condition
Polymer            100      MT carbon black,N990   30
Calcium hydroxide    6        Magnesium oxide         3
Fluorocure-5#        2.5
PressOven
6min at 177°C24h at 230°C
Process Safety Instructions
1)Store and use all fluoroelastomers only in a well-ventilated area.
2)Do not smoke in areas contaminated with dust from fluoroelastomers.
3)Avoid eye contact. After handling fluoroelastomers wash any skin that came in contact with the product with soap and water.
4)Potential hazards, including evolution of toxic vapors, exist during compounding or processing under high temperatures.
5)Before processing the fluoroelastomers, read and consult the MSDS, and follow all label directions and operation cautions..
Packaging And Storage
1)Fluoroelastomers be packed in PVC bags in the shape of rubber film, each bag weight 5KGS, and finally be put into a carton. Each carton contains 5 bags with net weight 25KGS.
2)It must be stored in a clean, cool, and dry place. The storage life is one year from the date of production. It must be re-inspected if over one year and only can use if qualified.
3)It is transported as non-dangerous chemicals. Avoid excessive vibration and far away from pollution, sunshine and water during the transport.
