Flurine® Peroxide-cured Fluoroelastomer- PC series FKM

Flurine® Peroxide-cured Fluoroelastomer- PC series FKM
Flurine® Peroxide-cured Fluoroelastomer- PC series FKMFlurine® Peroxide-cured Fluoroelastomer- PC series FKMFlurine® Peroxide-cured Fluoroelastomer- PC series FKM

Flurine® Peroxide-cured Fluoroelastomer- PC series FKM

Used in automotive, hydraulic applications, electrical and chemical industries.
CategoriesFluoroelastomer FKM
BrandZheflon PVDF & Flurine FKM Manufacturer
ModelP228
FeaturesPeroxide vulcanization. Short second cure time. Hi
UsesShaft seals, oil seals, gaskets, O-rings. Extrusio

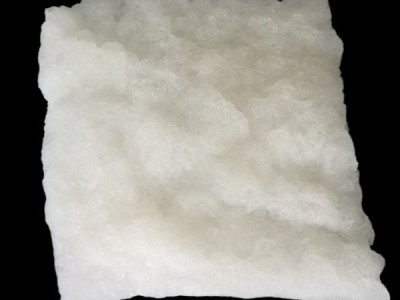

FormsWhite or light-yellow flake
Update TimeDec 27,2024
Detail Information
Description
Flurine®PC series is peroxide-cured fluoroelastomer, copolymerized with vinylidene fluoride (VF2), hexafluoropropylene (HFP), and bromine-containing or iodine-containing fluoroolefin monomers.

Usually used in automotive, hydraulic applications, electrical and chemical industries. It has excellent processability and mechanical properties, excellent resistance to high-temperature steam. In addition, only a very short curing time is required.
Technical Specifications
General
FeaturesPeroxide vulcanization. Short second cure time. High liquidity
UsesShaft seals, oil seals, gaskets, O-rings. Extrusion or calendering
FormsWhite or light-yellow flake
ItemsTypical ValueTest Method
P228
Physical Properties
Fluorine Content(mass%)66
Density(g/cc)1.78~1.84ASTM D297
Mooney Viscosity20~45ASTM D1646 ML 1+10 at 121°C
Water content0.15ASTM D 5668
Vulcanization Properties
T10(s)<60ASTM D5289
T90(s)<240ASTM D5289
Mechanical Properties
Tensile strength(MPa)16ASTM D412 Method A
100% Modulus5ASTM D412 Method A
Elongation at Break(%)200ASTM D412 Method A
Tearing Strength(KN/m)22ASTM D624
Hardness, Shore A73ASTM D2240, Type A
Compression Set38ASTM D395, Test B 70 hours at 200℃
Air-oven agingISO 188 After Dry Heat Aging;70 hours at 230℃
Tensile strength change rate(%)-20ASTM D412 Method A
Elongation at Break change rate(%)-20ASTM D412 Method A
Hardness change, Shore A2ASTM D2240, Type A
Thermal Properties
Glass Transition Temp, Tg(℃)-20ASTM D1329
Brittleness Temperature(℃)-30ASTM D2137
Chemical resistance Properties
Resistance to liquids3 # standard oil
Volume change rate(%)10ASTM D471 72 hours at 150℃
Mass change rate(%)2ASTM D471 72 hours at 150℃
FormulationCuring condition
Polymer 100 MT carbon black,N990 30PressOven
DPB25(45%) 3.0 TAIC(70%) 4.36min at 177°C,0.5°4h at 230°C
HT290 0.5
Process Safety Instructions
1)Store and use all fluoroelastomers only in a well-ventilated area.
2)Do not smoke in areas contaminated with dust from fluoroelastomers.
3)Avoid eye contact. After handling fluoroelastomers wash any skin that came in contact with the product with soap and water.
4)Potential hazards, including evolution of toxic vapors, exist during compounding or processing under high temperatures.
5)Before processing the fluoroelastomers, read and consult the MSDS, and follow all label directions and operation cautions..
Packaging And Storage
1)Fluoroelastomers be packed in PVC bags in the shape of rubber film, each bag weight 5KGS, and finally be put into a carton. Each carton contains 5 bags with net weight 25KGS.
2)It must be stored in a clean, cool, and dry place. The storage life is one year from the date of production. It must be re-inspected if over one year and only can use if qualified.
3)It is transported as non-dangerous chemicals. Avoid excessive vibration and far away from pollution, sunshine and water during the transport.
